Container and Trailer Specs
Whatever your equipment needs…
You Can Count on Crowley
Enclosed Containers
- Inside Measurement: L- 19′ 4″, W – 7′ 7″, H – 7′ 9″
- Exterior Measurement: L- 20′, W – 8′, H – 8′ 5′”
- Door Opening: W – 7′ 7″, H – 7′ 5″
- Cubic Capacity: 1,170
- Maximum Legal Cargo Weight: 40,000
- Maximum Tri-Axle Weight: 62,280
- Tare Weight: 4,830
- Inside Measurement: L- 39′ 5″, W – 7′ 7″, H – 8′ 9″
- Exterior Measurement: L- 40′, W – 8′, H – 9′ 5″
- Door Opening: W – 7′ 7″, H – 8′ 5″
- Cubic Capacity: 2,697
- Maximum Legal Cargo Weight: 44,200
- Maximum Overweight Cargo Weight: 58,290
- Tare Weight: 8,440
- Inside Measurement: L- 44′ 5″, W – 8′ 2″, H – 8′ 9″
- Exterior Measurement: L- 45′, W – 8′ 5″, H – 9′ 5″
- Door Opening: W – 8′ 2″, H – 8′ 9″
- Cubic Capacity: 3,268
- Maximum Legal Cargo Weight: 41,700
- Maximum Overweight Cargo Weight: 56,730
- Tare Weight: 10,220
- Inside Measurement: L- 44′ 6″, W – 8′ 3″, H – 8′ 11″
- Door Opening: W – 8′ 2″, H – 8′ 11″
- Cubic Capacity: 3,268
- Maximum Legal Cargo Weight: 41,700
- Maximum Overweight Cargo Weight: 56,730
- Tare Weight: 10,470
- Inside Measurement: L- 52′ 5″, W – 8′ 2″, H – 8′ 9″
- Exterior Measurement: L- 53′, W – 8′ 5″, H – 9′ 5″
- Door Opening: W – 8′ 2″, H – 8′ 9″
- Cubic Capacity: 3,857
- Maximum Legal Cargo Weight: 40,000
- Maximum Overweight Cargo Weight: 55,350
- Tare Weight: 11,850
Refrigerated and Insulated Equipment
- Inside Measurement: L- 17′ 9″, W – 7′ 5″, H – 7′ 4″
- Exterior Measurement: L- 20′, W – 8′, H – 8′ 5″
- Door Opening: W – 7′ 5″, H – 7′ 4″
- Cubic Capacity: 998
- Maximum Legal Cargo Weight: 60,670
- Maximum Overweight Cargo Weight: 67,200
- Tare Weight: 6,530
- Inside Measurement: L- 38′, W – 7′ 5″, H – 8′ 3″
- Exterior Measurement: L- 40′, W – 8′, H – 9′ 5″
- Door Opening: W – 7′ 5″, H – 8′ 4″
- Cubic Capacity: 2,373
- Maximum Legal Cargo Weight: 37,000
- Maximum Overweight Cargo Weight: 60,670
- Tare Weight: 9,700
- Inside Measurement: L- 43′, W – 8′, H – 8′ 3″
- Exterior Measurement: L- 45′, W – 8′ 5″, H – 9′ 5″
- Door Opening: W – 8′, H – 8′ 5″
- Cubic Capacity: 2,878
- Maximum Legal Cargo Weight: 36,280
- Maximum Overweight Cargo Weight: 55,000
- Tare Weight: 14,080

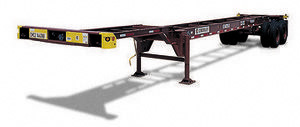

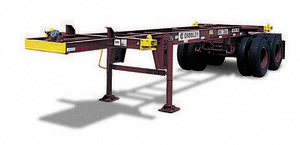

Chassis
- Inside Measurement: L- 23′ 6″, W – N/A, H – N/A
- Maximum Cargo Weight: 67,200
- Tare Weight: 7,000
- Inside Measurement: L- 40′ 8″, W – 8′, H – N/A
- Maximum Cargo Weight: 67,200
- Tare Weight: 6,900
- Inside Measurement: L- 45′ 8″, W – 8′, H – N/A
- Maximum Cargo Weight: 67,200
- Tare Weight: 7,950
- Inside Measurement: L- 53′ 8″, W – 8′, H – N/A
- Maximum Cargo Weight: 67,200
- Tare Weight: 7,900
- Inside Measurement: L- 43′ 7″, W – 9′, H – N/A
- Maximum Gross Weight: 80,000 lbs
- Tare Weight: 8,100 lbs

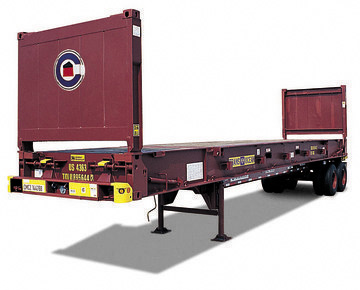

Specialty Equipment
- Inside Measurement: L- 19′ 5″, W – 7′ 10″, H – 7′ 4″
- Door Opening: W – N/A, H – N/A
- Cubic Capacity: N/A
- Maximum Legal Cargo Weight: 39,600 lbs
- Maximum Overweight Cargo Weight: 75,220 lbs
- Tare Weight: 6,480 lbs

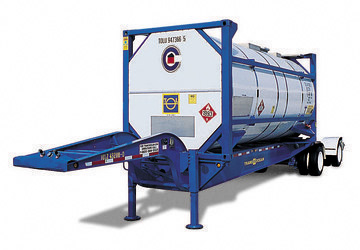

25,000 Liter (6,600 gallons)
Tare Weight 8,642 lbs
Maximum Gross Weight 79,366 lbs
Maximum Cargo Weight 70,724 lbs
24,000 Liter (6,340 gallons)
Tare Weight 8,025 lbs
Maximum Gross Weight 74,956 lbs
Maximum Cargo Weight 66,932 lbs
23,000 Liter (6,077 gallons)
Tare Weight 9,039 lbs
Maximum Gross Weight 74,956 lbs
Maximum Cargo Weight 65,918 lbs
- Inside Measurement: L- 39′ 6″, W – 7’10”, H – 6′ 5″
- Door Opening: W – N/A, H – N/A
- Cubic Capacity: N/A
- Maximum Legal Cargo Weight: 41,500 lbs
- Maximum Overweight Cargo Weight: 75,840 lbs
- Tare Weight: 11,685 lbs
- Tare Weight: 1,875 lbs
- Tare Weight: 1,550 lbs
Notes and Information
- All weights are listed in pounds (lbs.).
- 53′ Equipment can only be utilized to and from the U.S. Mainland and Puerto Rico.
- For guidance only for use on U.S. highways. Maximum weight allowances on individual units and shipments may vary per state depending on loading. Shippers are responsible for equipment loading, compliance with applicable road weight limitations and accurate weight declarations. Consult your Crowley representative for your specific needs.
- Various containers, even within the same size category, can have different tare weights based on manufacturer design and building criteria. The above tare weights on this page represent the maximum tare for each piece of equipment in any particular size category. You will never receive a unit that has a tare that is more than what is stated here.
- If actual tare on any unit you receive is less, than the actual tare may be used in place of these guidance figures for the SOLAS requirements.
Visit www.crowley.com/solas for frequently asked questions regarding SOLAS regulations or do not hesitate to contact our Customer Service department.
