38′ x 13′ Police Boat
EPB-03813
Length: 37’-8” (11.5 m)
Breadth: 13’-0” (3.9 m)
Depth: 4’-9” (1.5 m)
Loaded Draft: Approx 2’-0” (0.6 m)
Operational Speed: 40 knots
Main Engines: 2 x CAT 3126B
565 bhp @ 2500 rpm
Marine Gears: Twin Disc MG-5091
Fire Monitors: 21000 gpm
Fire Pump: 1000 gpm
Fuel Oil: 4300 gal

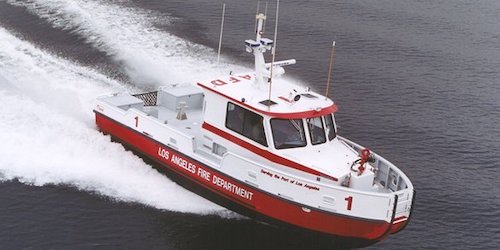

40′ x 14′ Fireboat
EFB-04014
Length: 40’-0” (12.2 m)
Breadth: 13’-6” (4.1 m)
Depth: 5’-2” (1.6 m)
Cruising Speed: 26 knots
Maximum Speed: 28 knots
Fuel Capacity: 300 gal (1.1 m3)
AFFF Foam Capacity: 50 gal (0.2 m3)
Main Engines: 2 x CAT 3126B
450 bhp @ 2800 rpm
Fire Pump Engine: 1 x Cummins 6BTA5.9-M3
Fire Pump: Hale 80FG 2,400 gpm
Fire Monitor: Stang 925545 1,000 gpm
Marine Gears: Twin Disc MG-5075A
54′ x 16′ Fireboat
EFB-05416
Length: 54’-4” (16.5 m)
Breadth: 16’-0” (4.9 m)
Draft: 3’-0” (0.9 m)
Max Personnel: 14
Fuel Capacity: 600 gal (2.3 m3)
Fresh Water: 50 gal (0.18 m3)
Foam Capacity: 150 gal (0.6 m3)
Propulsion: 2 x MTU Series 2000 M84L
Engine HP (each): 1200 bhp at 2450 rpm
Fire Pumps: 2 x Hale 8FGF
Water Jets: Rolls Royce
Max Speed: 40+ knots / 2450 rpm
Cruising Speed: 36 knots / 2300 rpm
Towing Capacity: 2100 displacement tons
88′ x 25′ Fireboat
EFB-08825
Length: 88’-0” (26.8 m)
Breadth: 25’-0” (7.6 m)
Depth: 14’-4” (4.4 m)
Crew: 3 + 4 fire fighters
Fuel Oil: 10,900 gal (41,200 L)
Lube Oil: 175 gal (660 L)
Fresh Water: 250 gal (3,780 L)
Fire Fighting Foam: 1,000 gal (3,780 L)
Pump Capacity: 18,000 gpm (4,000 m³)
Propulsion: 2 x Cummins QSK19-M
Engine Horsepower: 2 x 750 bhp (559 kW)
Speed: Full Load Condition 11.5 knots
Fire Engine: 1 x Cummins QSK19-M
Certifications: 3 x CounterFire ESF 300-550
108′ x 27′ Fireboat
EFB-10827
Length: 108’-0” (32.9 m)
Breadth: 26’-10” (8.2 m)
Depth: 15’-0” (4.6 m)
Speed: 14 knots
Fuel Capacity: 20,940 gal (79.3 m3)
Fresh Water Capacity: 1,200 gal (4.5 m3)
Foam Capacity: 6,000 gal (22.7 m3)
Pumping Capacity: 24,000 gpm (5,450 m3/hr)
Main Engine: 2 x DD 8V-4000, M71, 2 x 1500 bhp
(1,119 kW @ 2000 rpm)
Fire Pump Engines: 2 x DD 8V-4000, M70, 2 x 1440 bhp
(1,074 kW @ 1950 rpm)
Fire Monitors: 1 x 7,000 gpm (1,590 m3/hr)
2 x 5,500 gpm (1,250 m3/hr)
2 x 3,000 gpm (680 m3/hr)
2 x 1,800 gpm (400 m3/hr)
3 x 1,500 gpm (340 m3/hr)
Crane Ladder: 55’-0” (16.8m)
