Tugboats

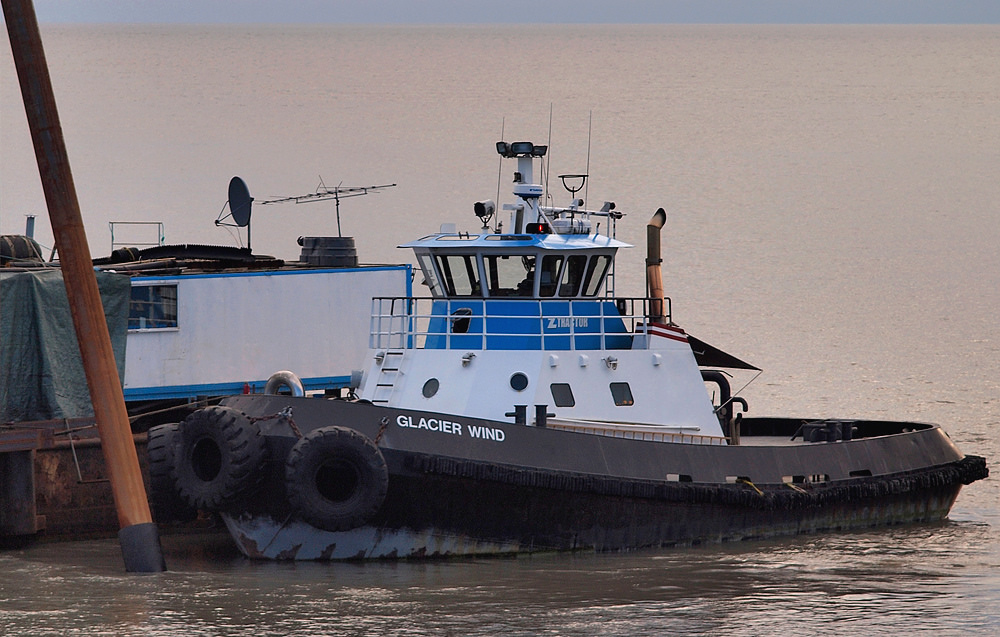

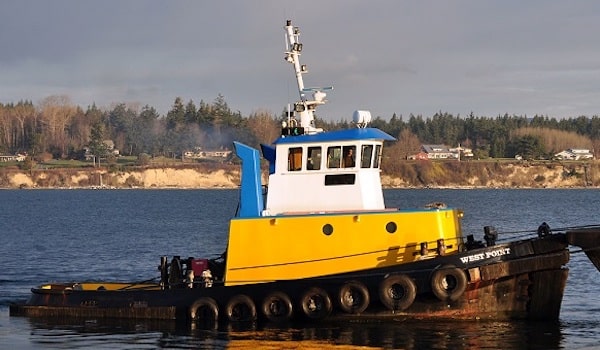

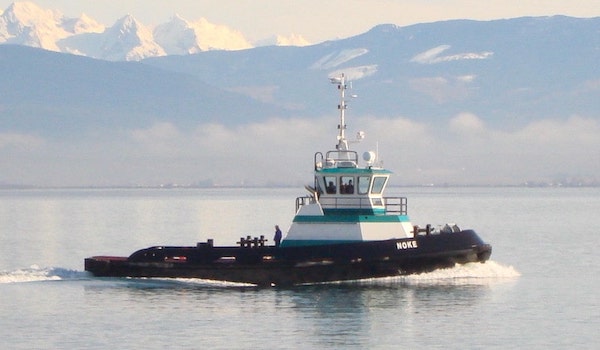

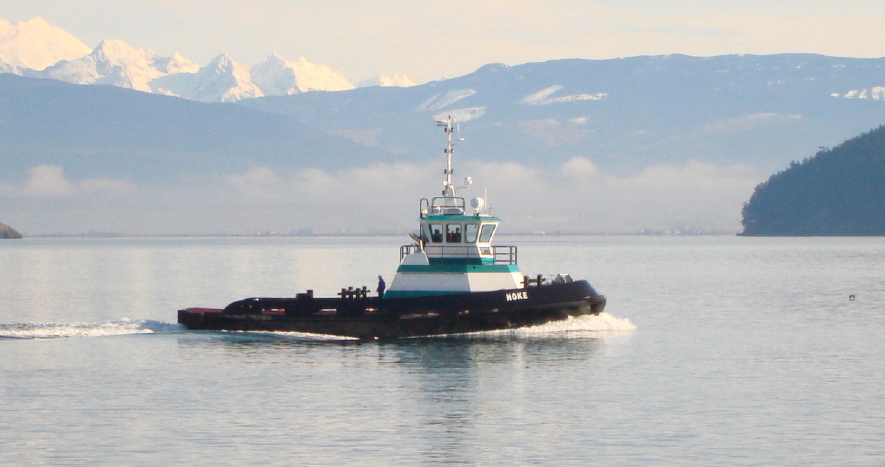

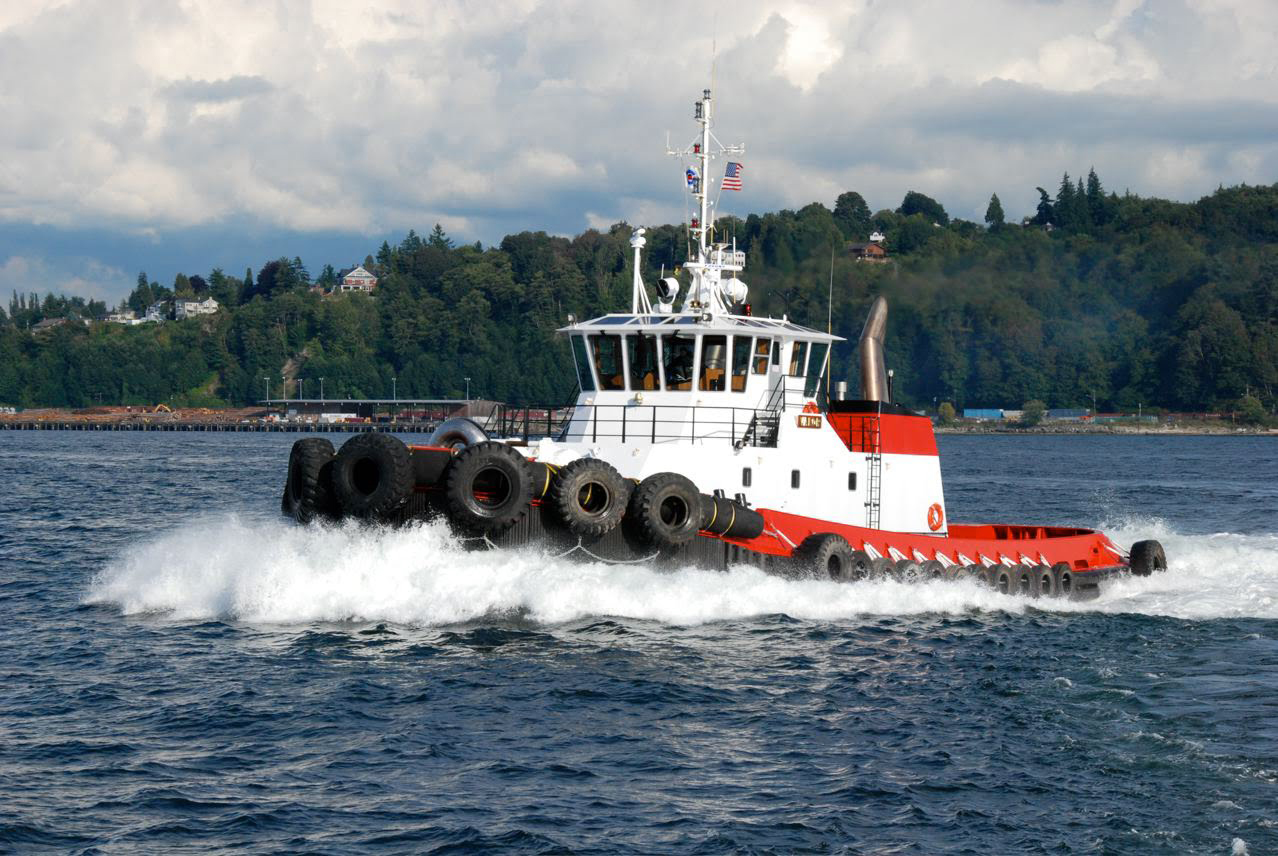

65′ x 24′ Ship Assist Tug
THS-06524
LENGTH: 65’-0” (19.8 m)
BREADTH: 24’-0” (7.9 m)
DEPTH: 10’-0” (3 m)
BOLLARD: 14 ST
FUEL CAPACITY: 9,300 gal
65′ x 26′ Ship Assist Tug
THS-06526
AVAILABLE VERSIONS
Z-Drive Tugboat (THS-06526)
LENGTH: 65’-0” (19.8 m)
BREADTH: 26’-0” (7.9 m)
DEPTH: 10’-0” (3 m)
BOLLARD: 26T
ENGINES: 2250 HP
FUEL CAPACITY: 15,788 gal

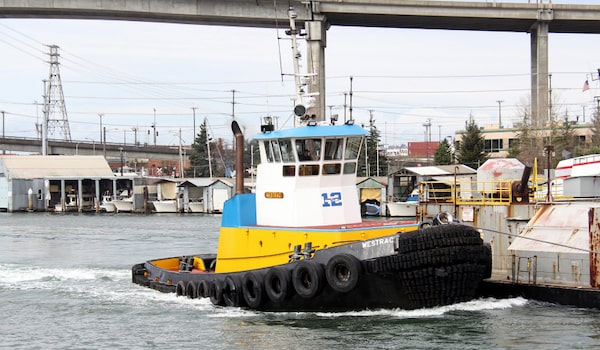

74′ x 30′ Ship Assist Tug
THS-07430
AVAILABLE VERSIONS
Z-Drive Tugboat (THS-07430)
Tier IV Tug Series
LENGTH: 74′ (22.56m)
BREADTH: 30′ (9.14m)
DEPTH: 13′ 3″ (4.06m)
BOLLARD: 102k lbs | 51 ST | 46.3 MT
ENGINES: 5,000 HP
FUEL CAPACITY: 21,950 gal (83,000 L)
FRESH WATER: 1,855 gal (7,000 L)
BERTHS: 5

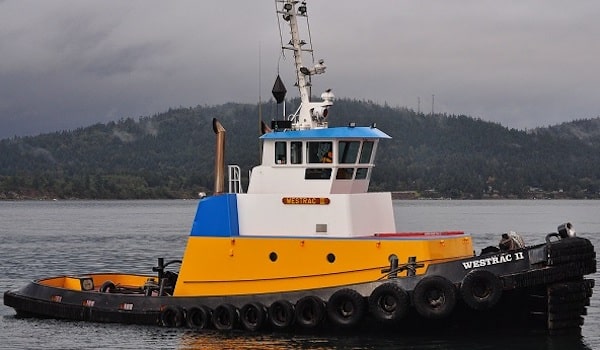

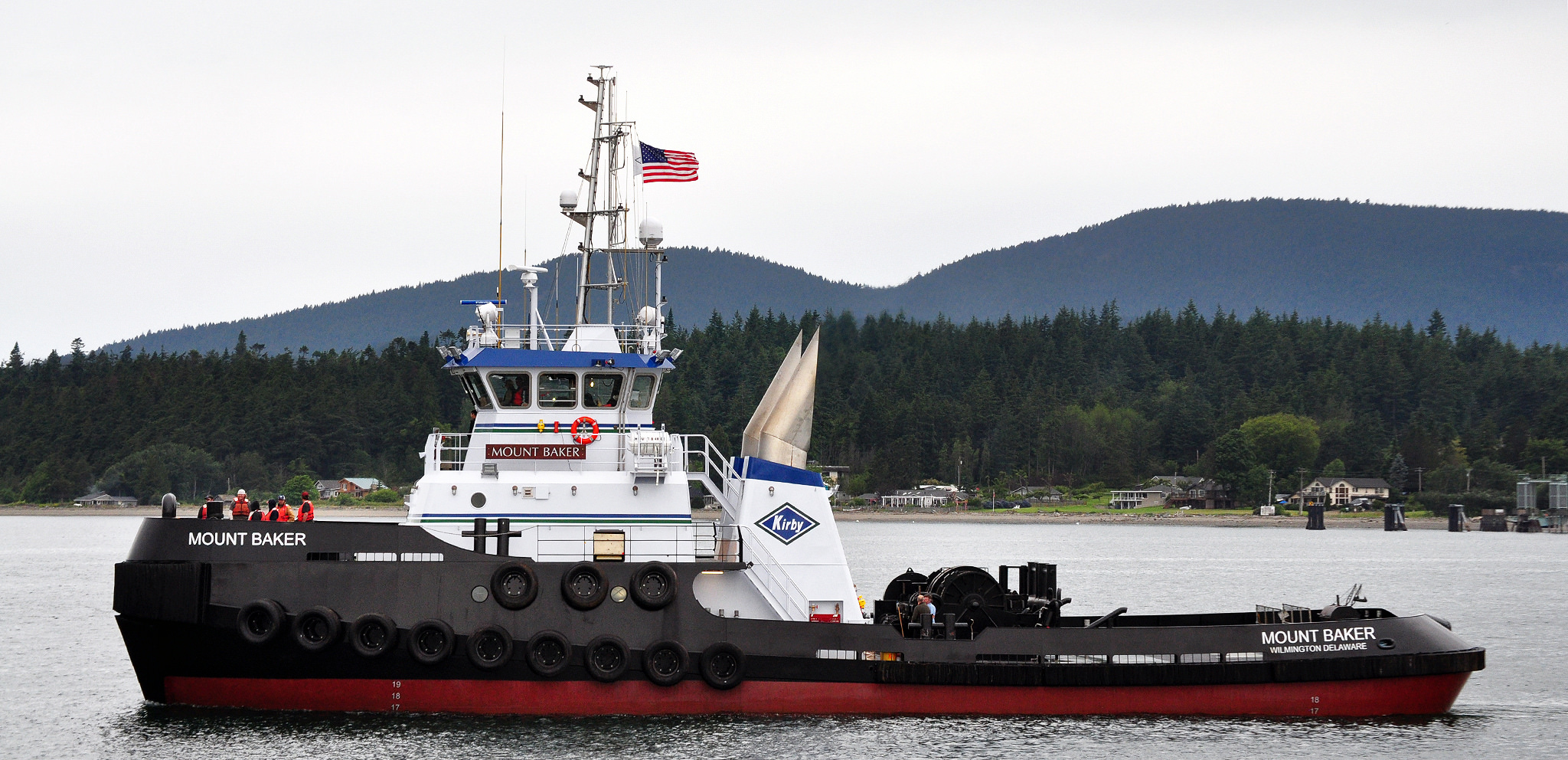

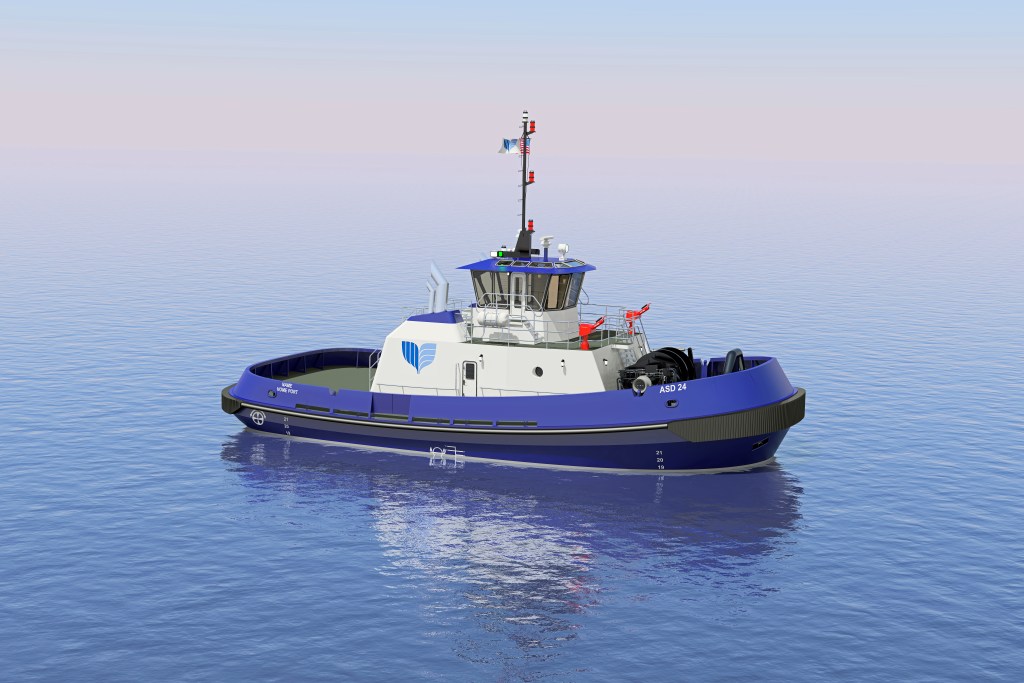

78′ x 37′ Ship Assist Tug
THS-07837
AVAILABLE VERSIONS
Z-Drive Tugboat (THS-07837)
LENGTH: 78’-0” (23.8 m)
BREADTH: 37’-0” 11.5 m)
DEPTH: 14’-8” (4.5 m)
BOLLARD: 65 mT
ENGINES: 2 x 2,000 kW @ 1800 RPM
FUEL CAPACITY: 18,805 gal

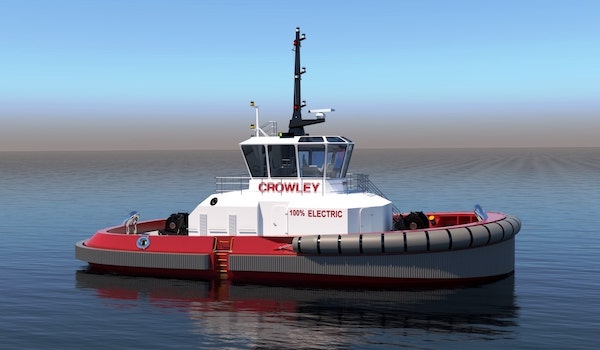

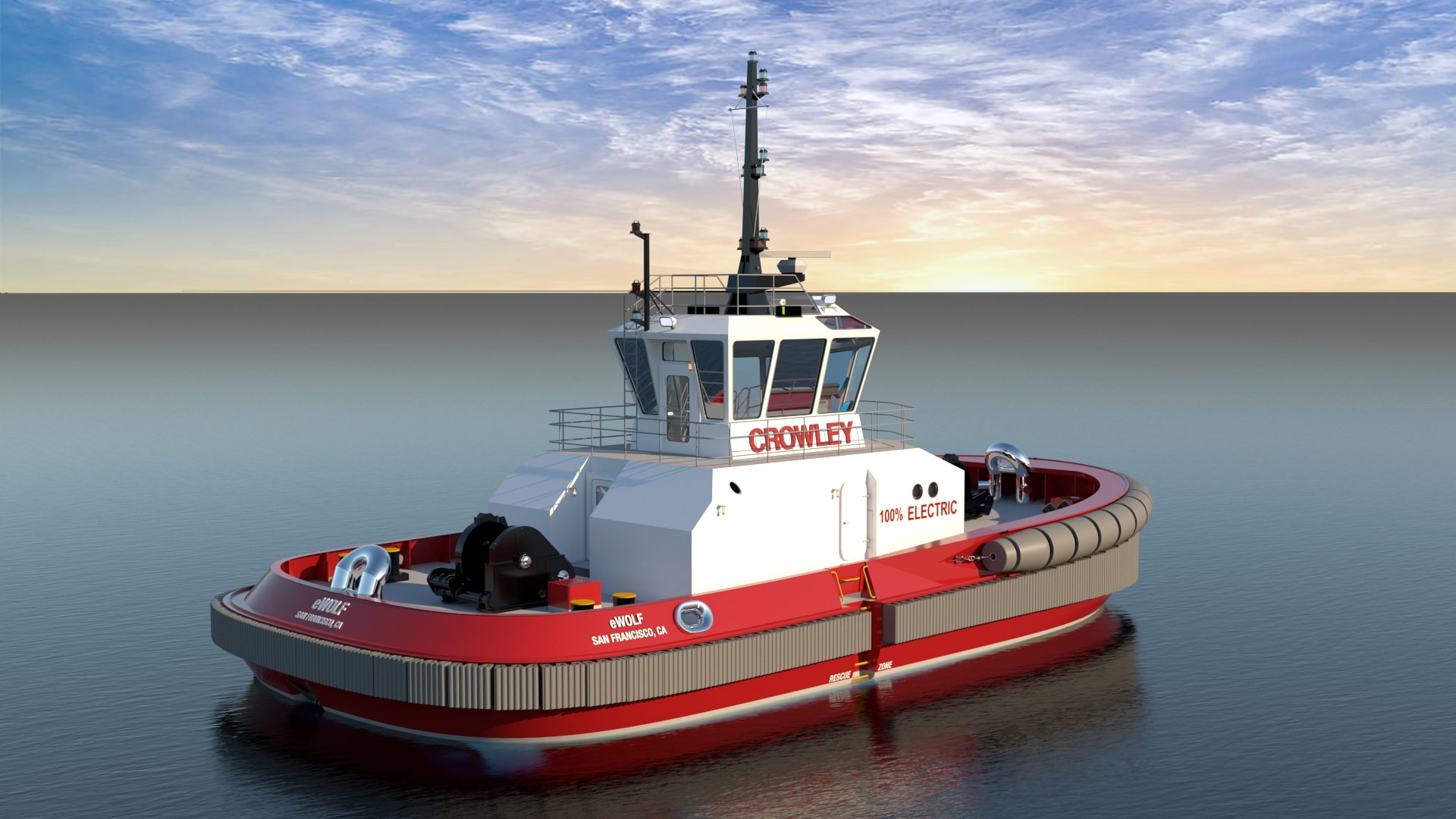

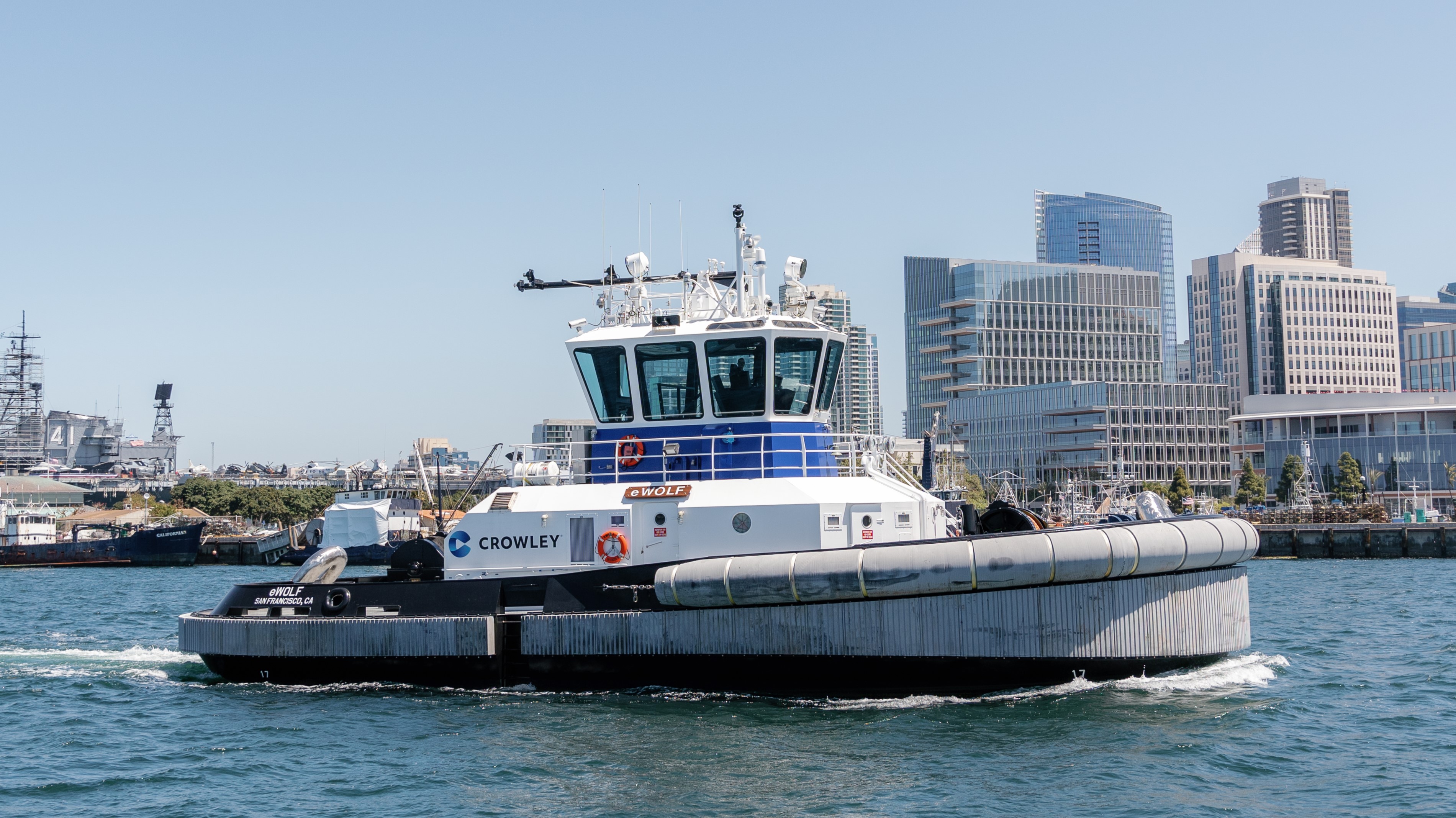

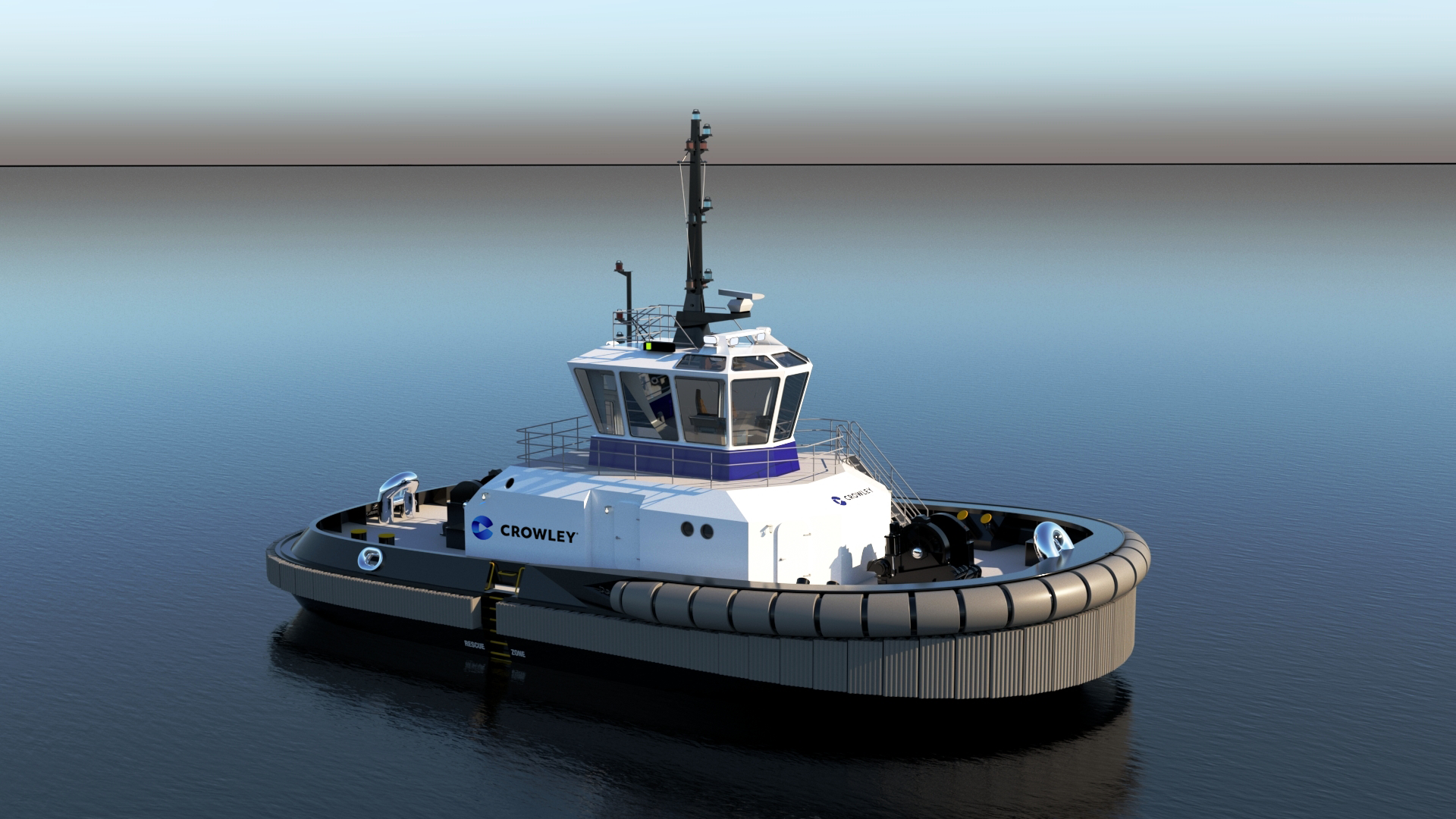

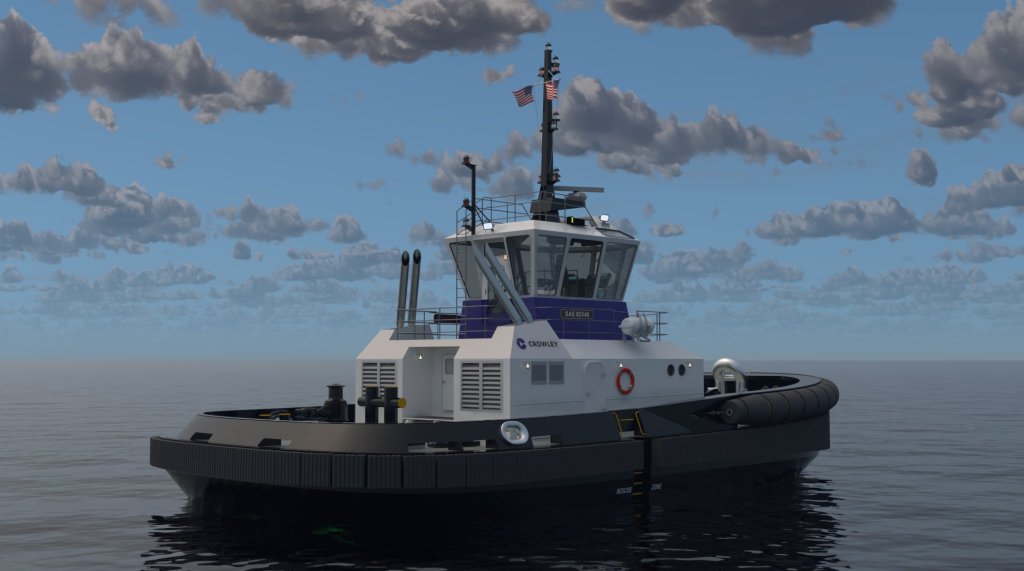

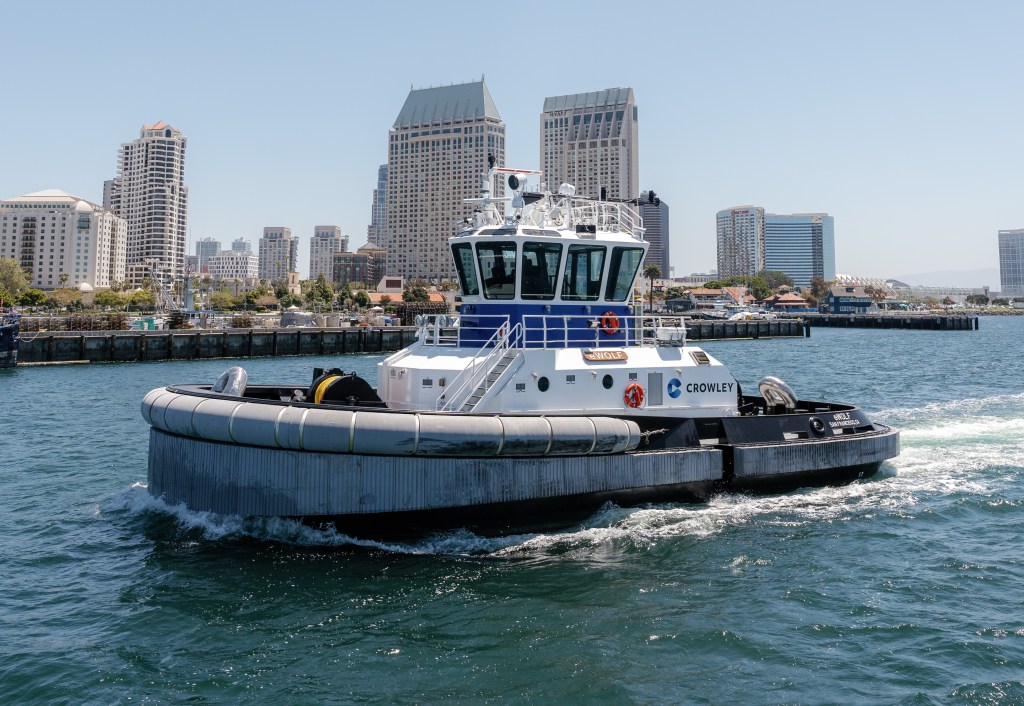

82′ x 40′ eTug Ship Assist Tug
THS-08240E
2 x 2100 kW electric motors
LENGTH: 82′ (25m)
BREADTH: 40′ (12.1m)
DEPTH: 17′ 9″ (5.4m)
BOLLARD: 140k lbs | 70 ST | 63.5 MT
ENGINES: 4200 kW (~5632 HP)
FUEL CAPACITY: 9,800 gal (37,000 L)
FRESH WATER: 750 gal (2,840 L)
BERTHS: 4
82’ x 40’ Ship Assist Tug
THS-08240C
LENGTH: 82′ (25m)
BREADTH: 40′ (12.1m)
DEPTH: 21′ 9″ (5.4m)
BOLLARD: 90 ST
ENGINES: 2x Caterpillar 3516E
FUEL CAPACITY: 30,380 gal
BERTHS: 6
84′ x 30′ Ship Assist Tug
THS-08430
AVAILABLE VERSIONS
Z-Drive Tugboat (THS-08430)
Tier IV Tug Series
LENGTH: 84′ (25.6m)
BREADTH: 30′ (9.14m)
DEPTH: 15′ 3″ (4.65m)
ENGINES: 5,000 HP
FUEL CAPACITY: 40,625 Gal
FRESH WATER: 1,045 Gal
BERTHS: 5

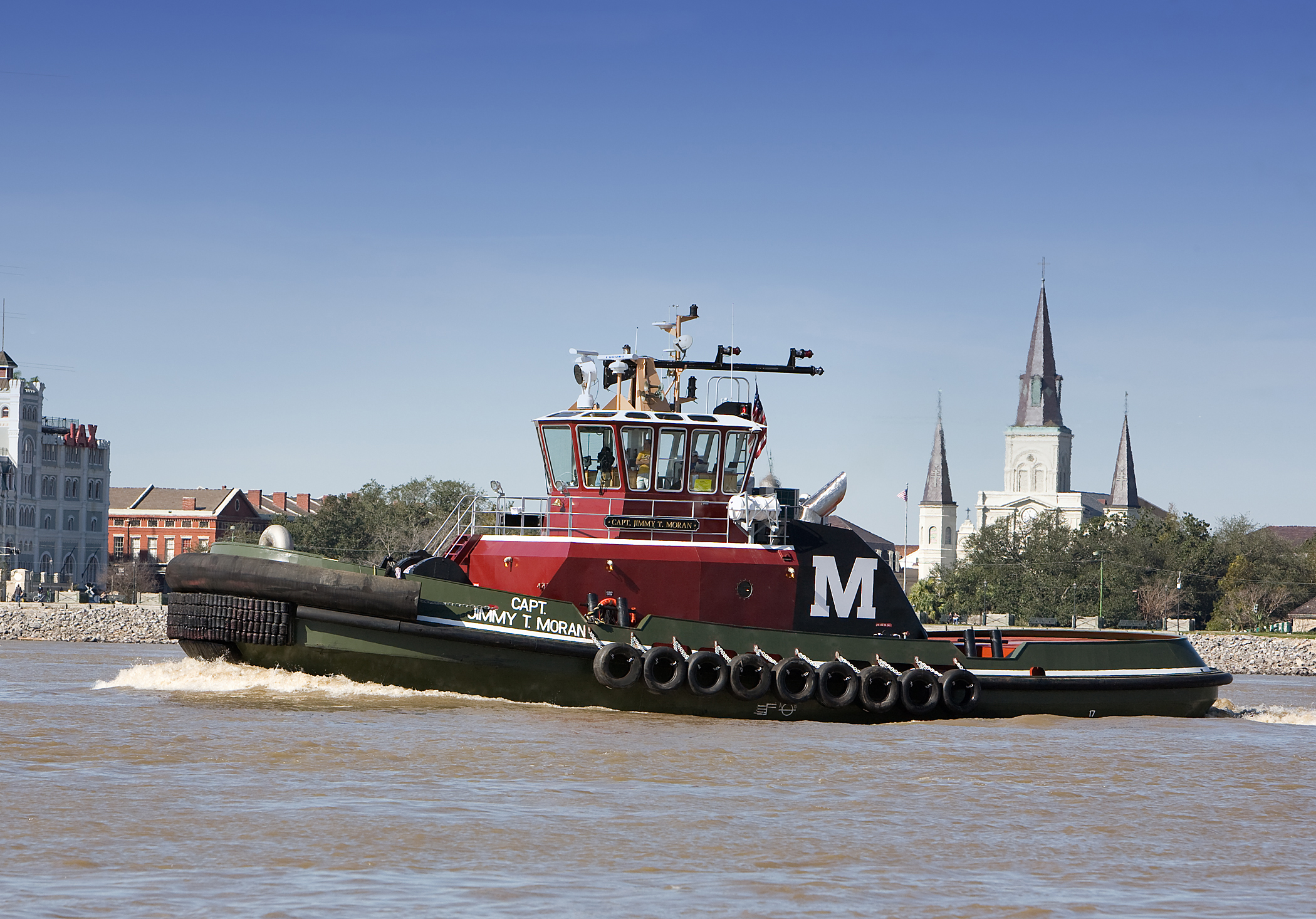

86′ x 36′ Ship Assist Tug
THS-08636
AVAILABLE VERSIONS
Z-Drive Tugboat (THS-08636)
Tier IV Tug Series
LENGTH: 86′ (26.2m)
BREADTH: 36′ (11m)
DEPTH: 15′ 10″ (4.8m)
BOLLARD: 139k lbs | 69.5 ST | 65 MT
ENGINES: 5,360 HP
FUEL CAPACITY: 31,050 gal (117k L)
FRESH WATER: 3,150 gal (11,900 L)
LUBE/DIRTY OIL: 705 gallons each
86′ x 44′ eTug+ Hybrid Ship Assist Tug
THS-08644H
Length Overall: 89’-10 5/8”
Length Molded: 86’
Beam Molded: 44’
Bollard Pull: 90 ST
Speed:10 KTS
Gross Tonnage (US): <200 GRT
Gross Tonnage (IRC): < 500 GRT
Classification: X ABS USCG
Subchapter

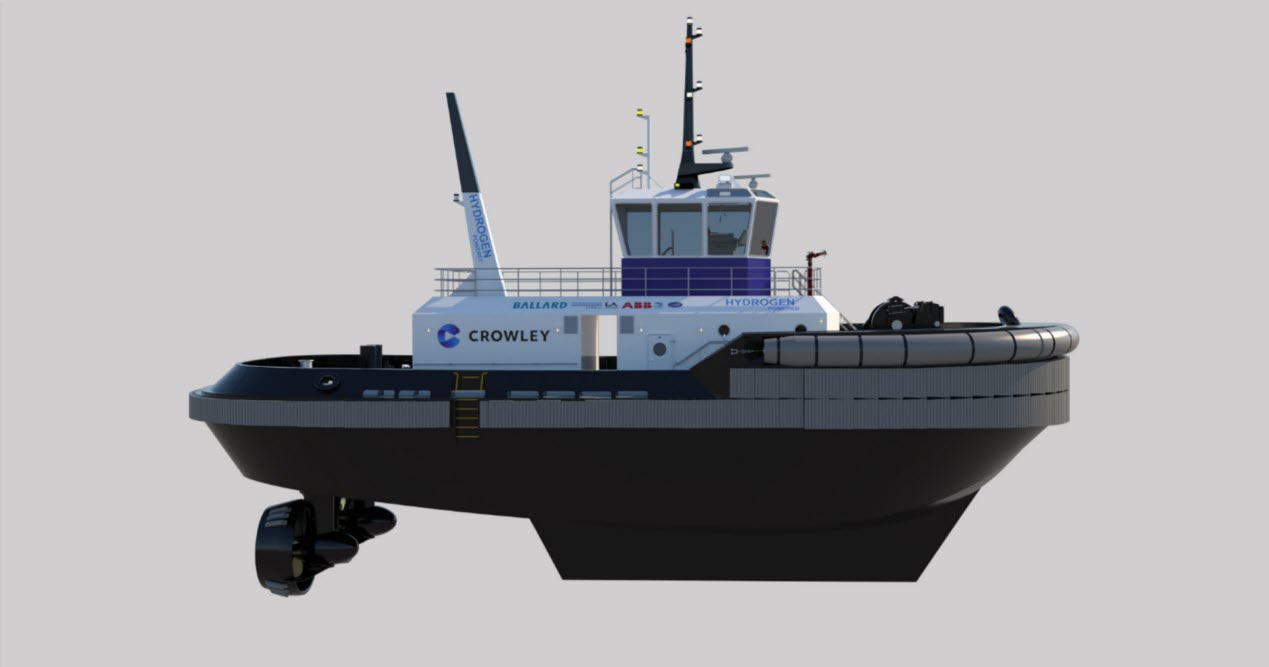

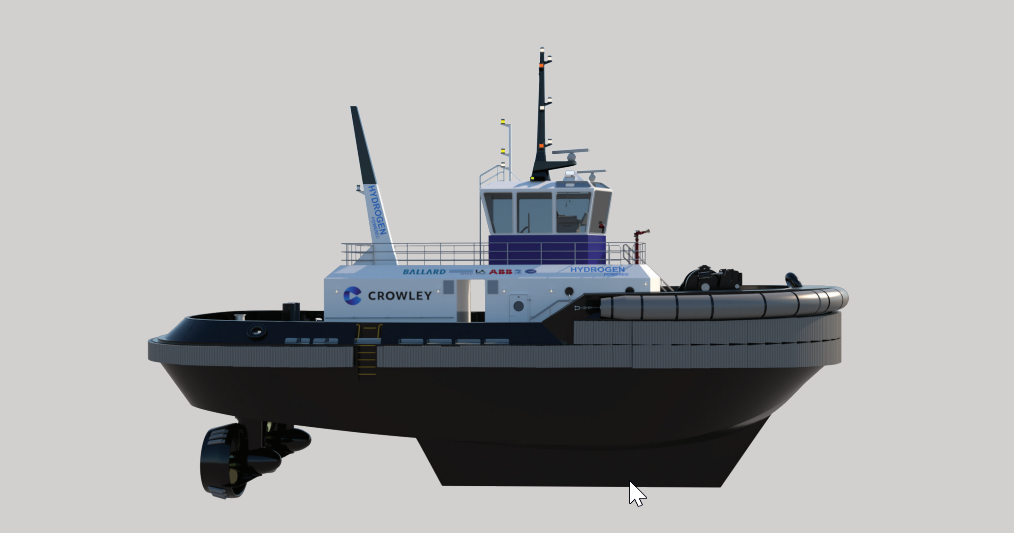

90′ x 42′ HyZET Ship Assist Tug
THS-09042H
Length Overall: 90’ Molded
Beam: 42’
Bollard Pull: 90 ST
Berths: 8
Energy Storage/Peak Shaving: 1.2MW FC
power + 3.6MW ESS power
Propulsors: 5.0MW total installed
ABB Azipod or L-Drive
Power (kw): ABB Onboard DC Grid™
fully electrified propulsion
integrating ~6 x Ballard FCwave
@200 kW. 2 x battery sized for bollard pull
test (est. 800kWh with high C-rate)

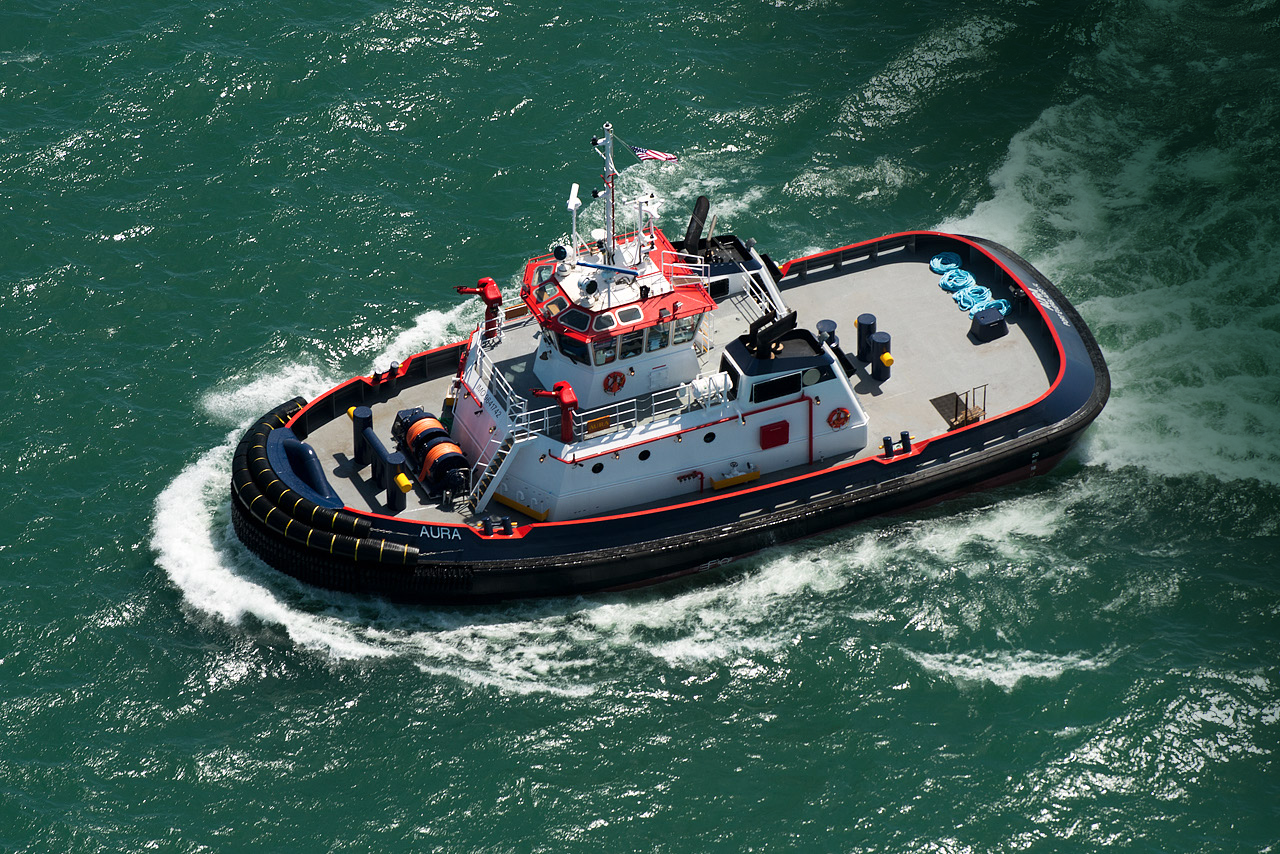

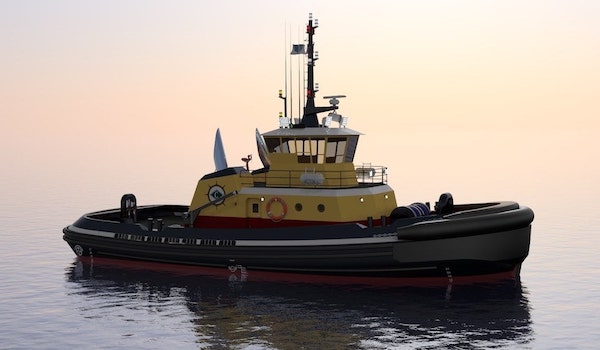

92′ x 38′ Ship Assist Tug
THS-09238
LENGTH: 92′ (28m)
BREADTH: 38′ (11.5m)
DEPTH: 16′ 9″ (5m)
BOLLARD: 110k lbs | 55.1 ST | 50 MT
ENGINES: 4,640 HP
FUEL CAPACITY: 38,325 gal (145k L)
FRESH WATER: 2,500 gal (9,500 L)
LUBE OIL: 500 gal (1,900 L)

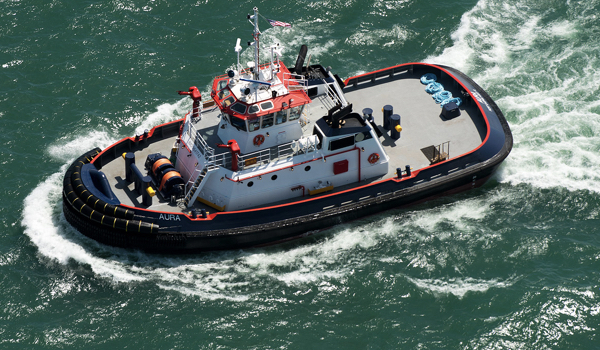

92′ x 38′ Ship Assist Tug
THS-09238C
Tier IV Tug Series
LENGTH: 92′ (28m)
BREADTH: 38′ (11.5m)
DEPTH: 19″ (5m)
BOLLARD: 110k lbs | 90 ST | 81.6 MT
ENGINES: 4,640 HP
FUEL CAPACITY: 44,193 gal (167k L)
FRESH WATER: 16,862 gal (63k L)
LUBE OIL: 514 gal (1,945 L)

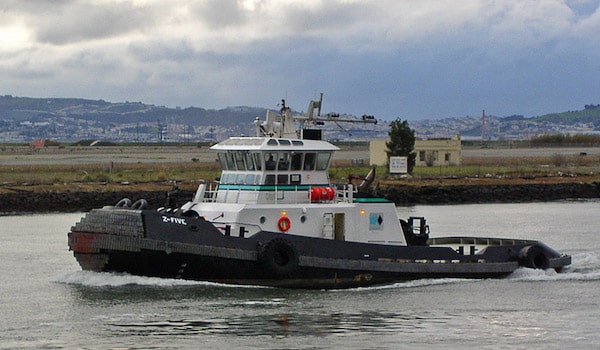

94′ x 32′ Ship Assist Tug
THS-09432
AVAILABLE VERSIONS
Z-Drive Tugboat (THS-09432)
ASD Tugboat
LENGTH: 94′ (28.7m)
BREADTH: 32′ (9.8m)
DEPTH: 14′ 9″ (4.5m)
BOLLARD: 110k lbs | 55.1 ST | 50 MT
ENGINES: 4,000 HP
FUEL CAPACITY: 33,632 gal (127k L)
FOAM: 1,572 gal (5,590 L)

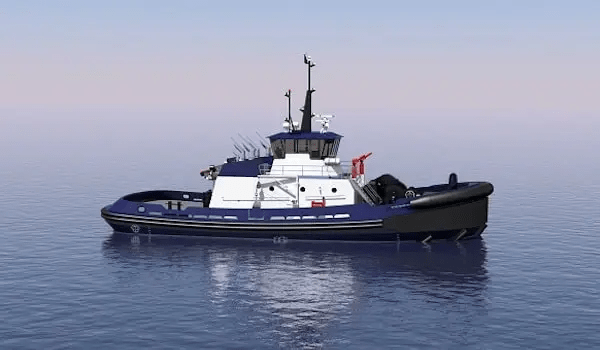

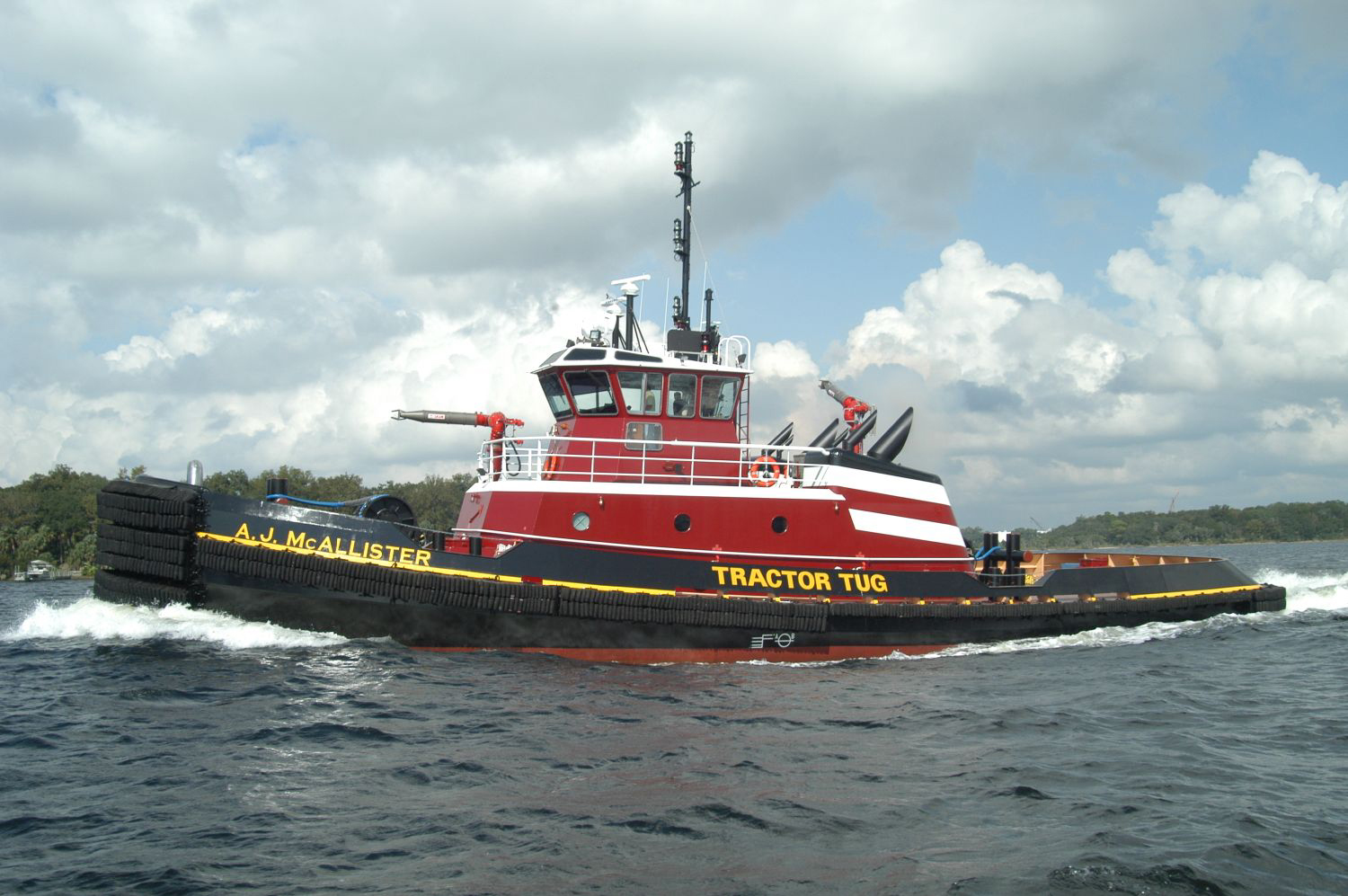

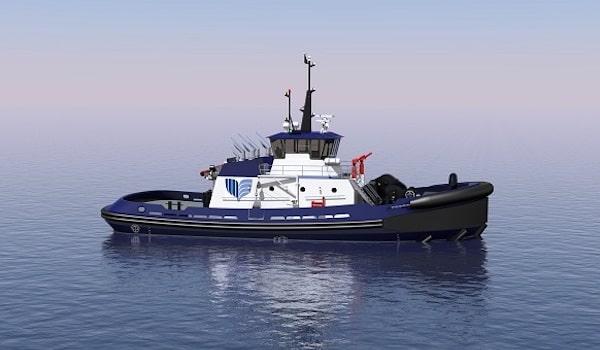

96′ x 34′ Ship Assist Tug
THS-09634
AVAILABLE VERSIONS
Z-Drive Tugboat (THS-09634)
Tier IV Tug Series
LENGTH: 96′ (29.3m)
BREADTH: 34′ (10.4m)
DEPTH: 14′ 9″ (4.5m)
BOLLARD: 139k lbs | 69.5 ST | 65 MT
ENGINES: 5,150 HP
FUEL CAPACITY: 30k gal (113,562 L)
FRESH WATER: 6,150 gal (23,280 L)
LUBE OIL: 560 gallons

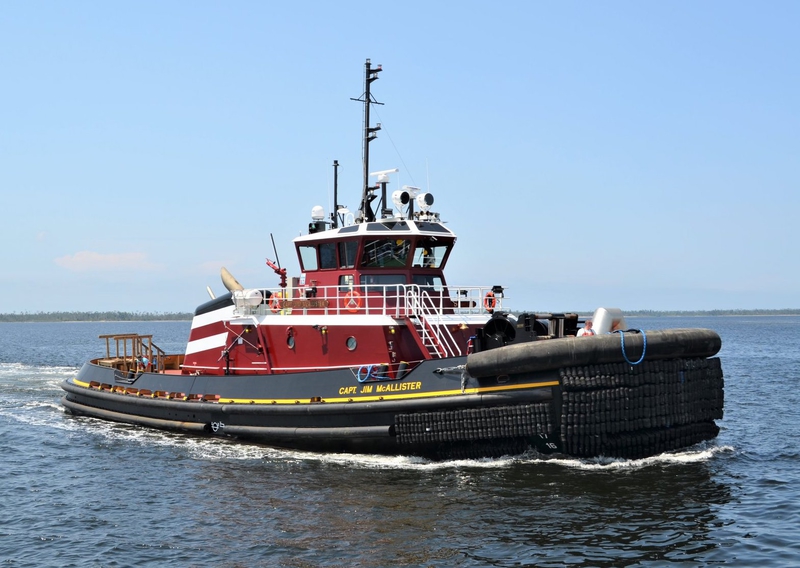

100′ x 40′ Ship Assist Tug
TES-10040H
AVAILABLE VERSIONS
Hybrid Tugboat (TES-10040)
LNG Tugboat
Z-Drive Tugboat
LENGTH: 100′ (30.5m)
BREADTH: 40′ (12.1m)
DEPTH: 17′ (5m)
BOLLARD: 180k lbs | 90 ST | 81.6 MT
ENGINES: 2 CAT 3516 Diesel
FUEL CAPACITY: 68,650 gal (312k L)
FRESH WATER: 4,300 gal (19.5k L)
BERTHS: 7
100′ x 40′ Ship Assist Tug
TES-10040C
Tier IV TUg Series (TES-10040C)
LENGTH: 100′ (30.5m)
BREADTH: 40′ (12.1m)
DEPTH: 17′ (5m)
BOLLARD: 180k lbs | 90 ST | 81.6 MT
ENGINES: 2 CAT 3516 Diesel
FUEL CAPACITY: 68,650 gal (312k L)
FRESH WATER: 4,300 gal (19.5k L)
BERTHS: 7

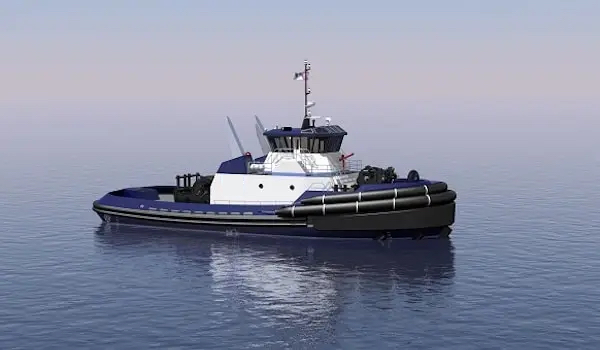

108′ x 40′ Ship Assist Tug
TES-10840
LENGTH: 108′ (32.9m)
BREADTH: 40′ (12.2m)
DEPTH: 18′ (5.5m)
BOLLARD: 190k lbs | 95 ST | 86.2 MT
ENGINES: 6,600 HP
FUEL CAPACITY: 123k gal (465k L)
FRESH WATER: 4,300 gal (16,275 L)
UREA: 4,500 gal (17,000 L)

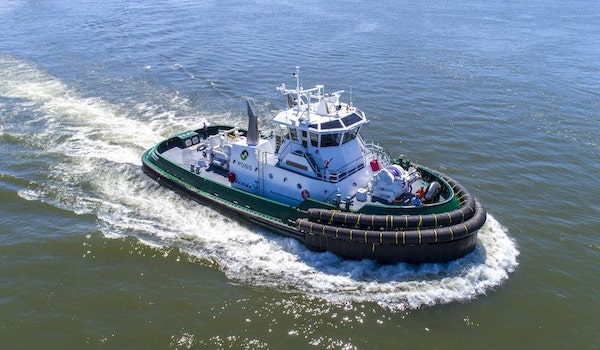

110′ x 40′ Ship Assist Tug
TES-11040
LENGTH: 110′ (33.5m)
BREADTH: 40′ (12.1m)
DEPTH: 18′ (5.5m)
BOLLARD: 190k lbs | 95 ST | 86.2 MT
ENGINES: 6,770 HP
FUEL CAPACITY: 123k gal (465k L)
FRESH WATER: 4,300 gal (16,275 L)
UREA: 4,500 gal (17,000 L)

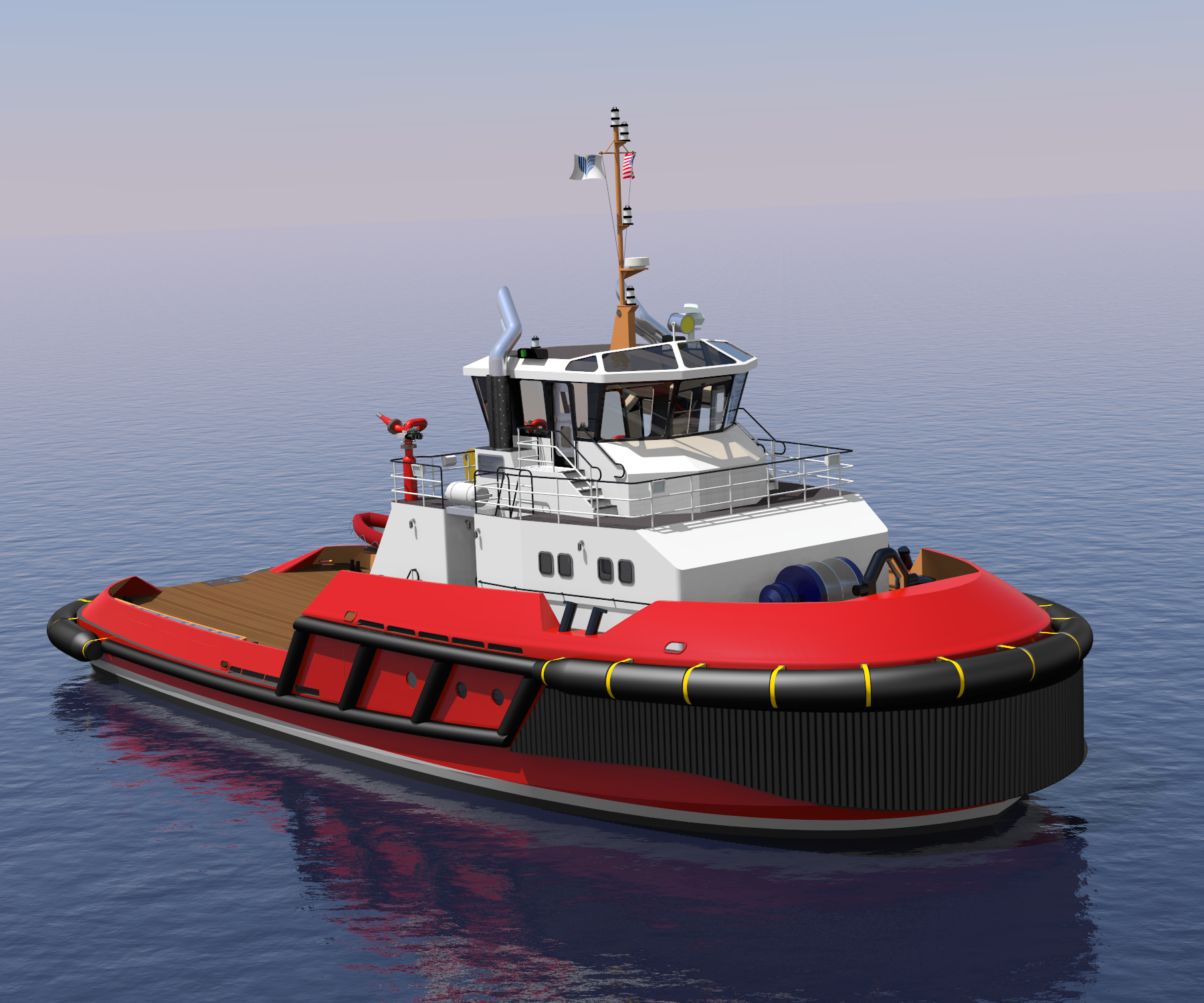

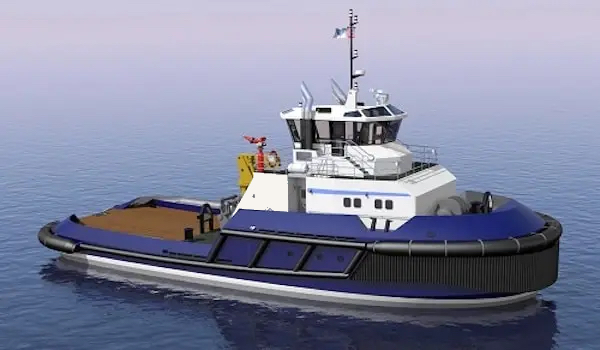

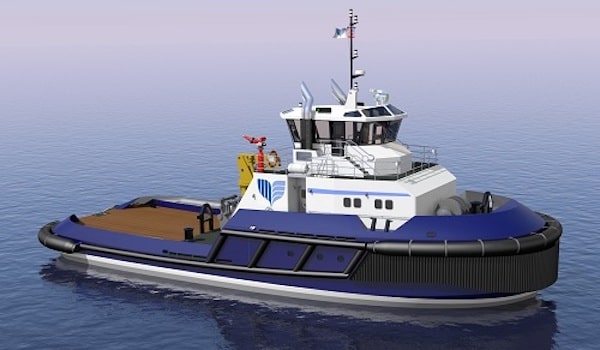

111′ x 43′ Multi-Purpose Tug
TES-11143
LENGTH: 111′ 6″ (34m)
BREADTH: 42′ 8″ (13m)
DEPTH: 18′ (5.5m)
BOLLARD: 176k lbs | 88 ST | 80 MT
ENGINES: 3,150 HP
FUEL CAPACITY: 118k gal (446k L)
FRESH WATER: 14,529 gal (55k L)

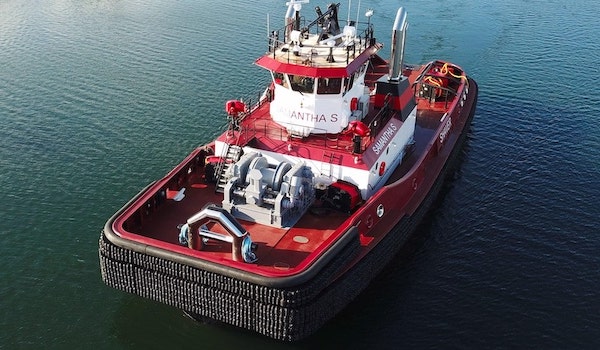

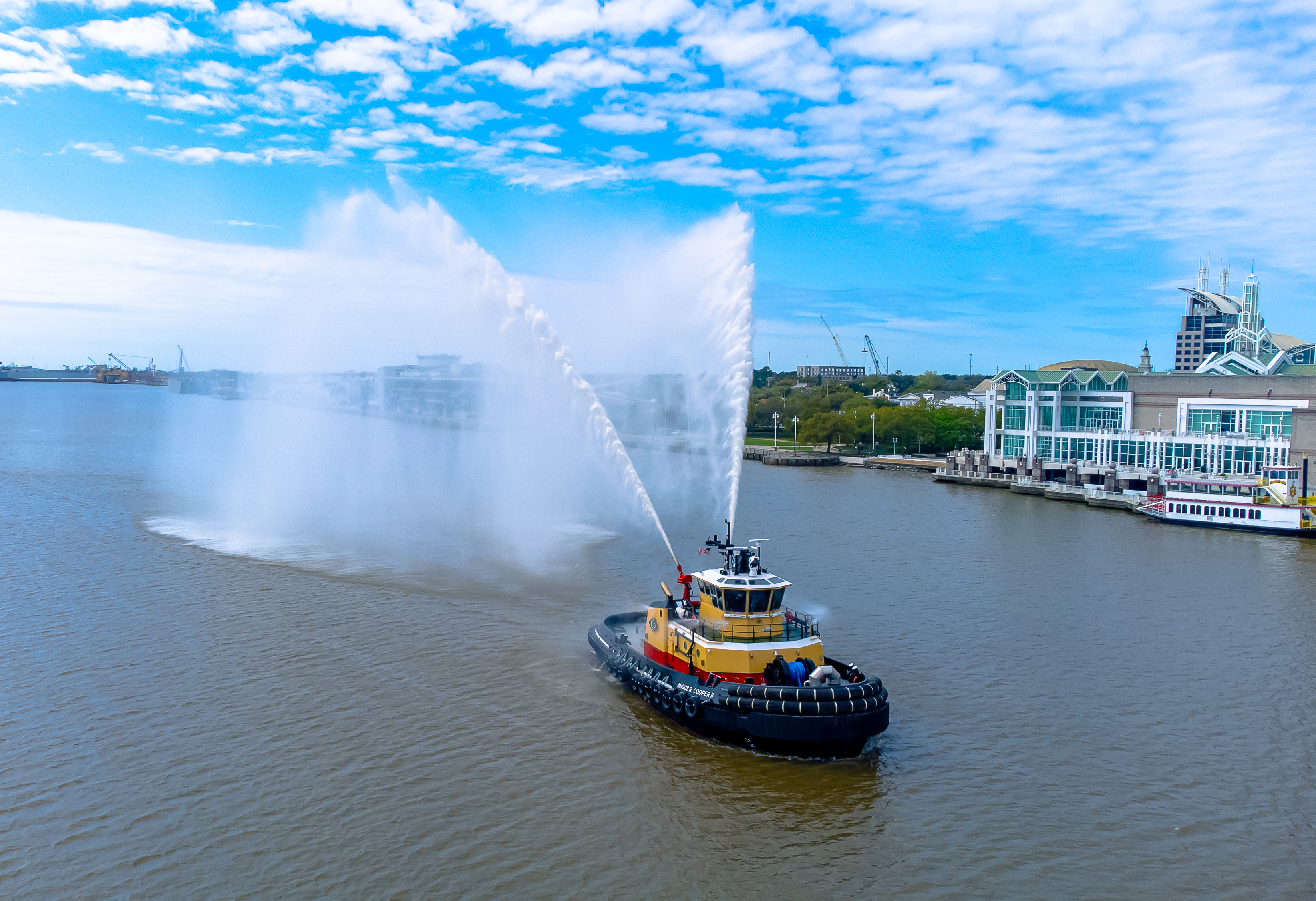

112′ x 44′ Ship Assist Tug
TES-11244
LENGTH: 112′ (34.1m)
BREADTH: 44′ (13.4m)
DEPTH: 20′ (6.1m)
BOLLARD: 230k lbs | 115 ST | 104 MT
ENGINES: 8,432 HP
FUEL CAPACITY: 108k gal (408k L)
FIREFIGHTING: FIFI 1
BERTHS: 9 to 10

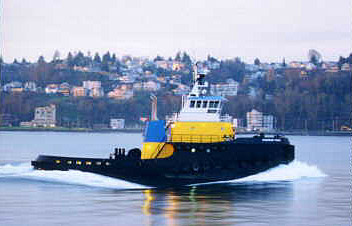

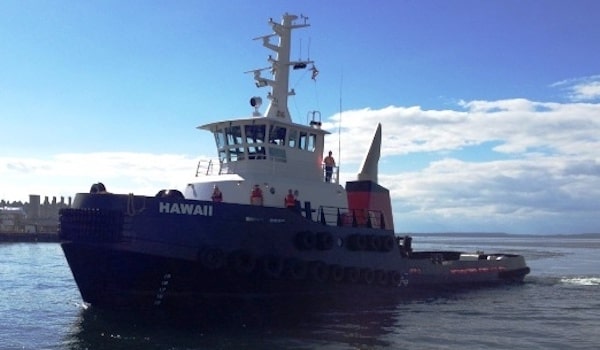

120′ x 35′ Line Haul Tug
TLH-12035
LENGTH: 120′ (36.6m)
BREADTH: 35′ (10.7m)
DEPTH: 21′ (6.4m)
BOLLARD: 160k lbs | 80 ST | 72.6 MT
ENGINES: 5,360 HP
FUEL CAPACITY: 158k gal (600k L)
FRESH WATER: 11,000 gal (41,600 L)

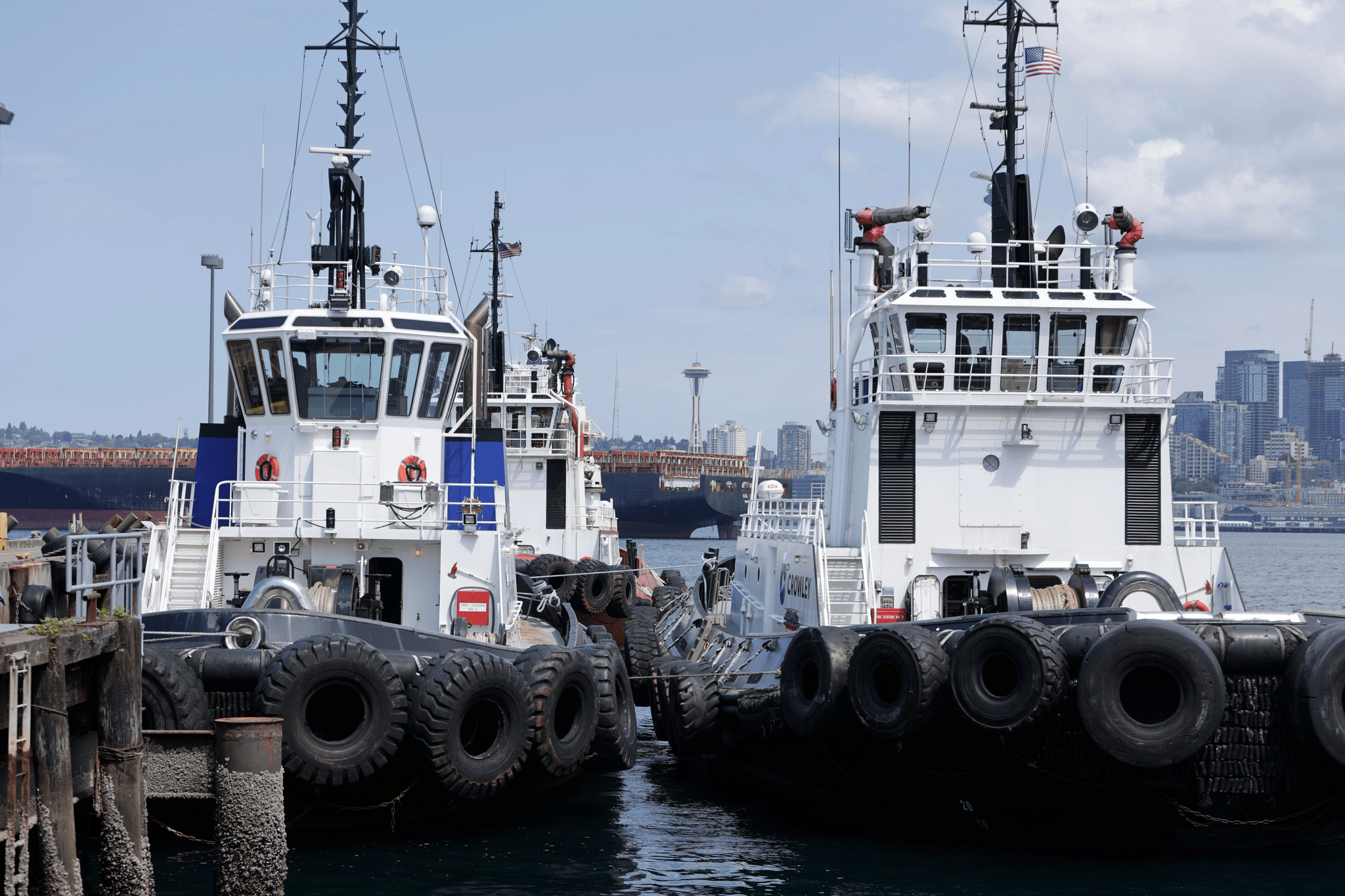

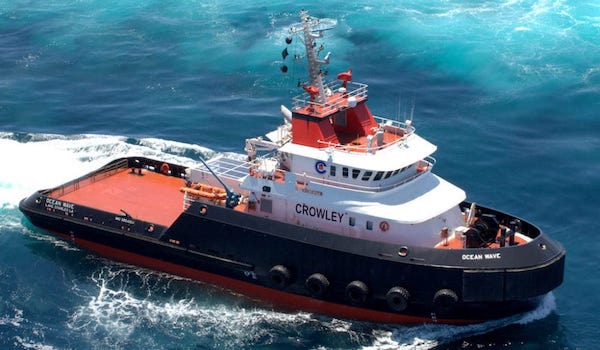

146′ x 46′ Line Haul DP Tug
TLH-14646
LENGTH: 146′ (44.4m)
BREADTH: 46′ (14m)
DEPTH: 25′ (7.6m)
BOLLARD: 300k lbs | 165 ST | 150 MT
ENGINES: 10,880 HP
FUEL CAPACITY: 203k gal (768k L)
LUBE OIL: 2,306 gal (8,729 L)

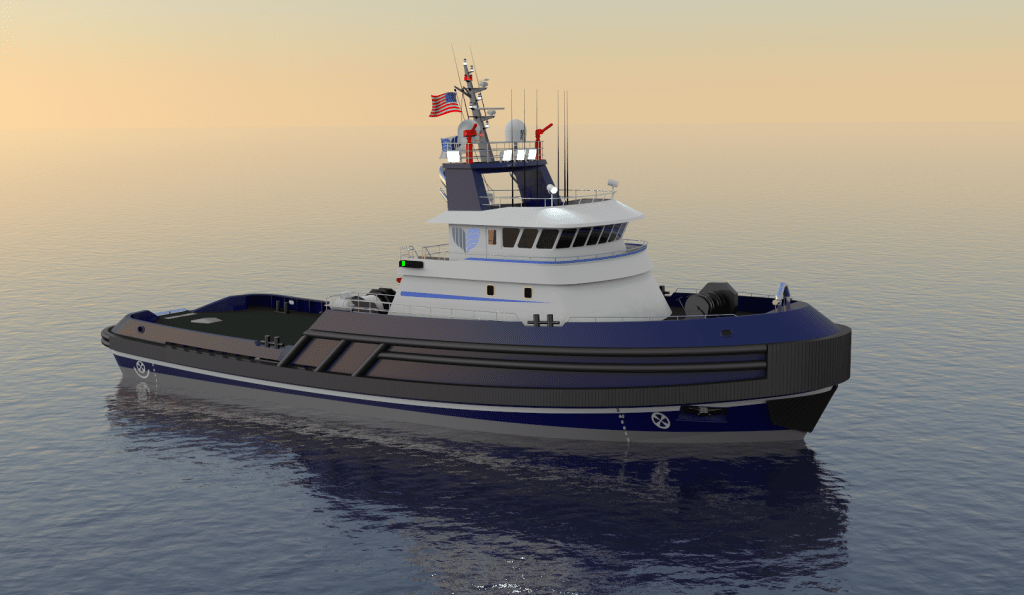

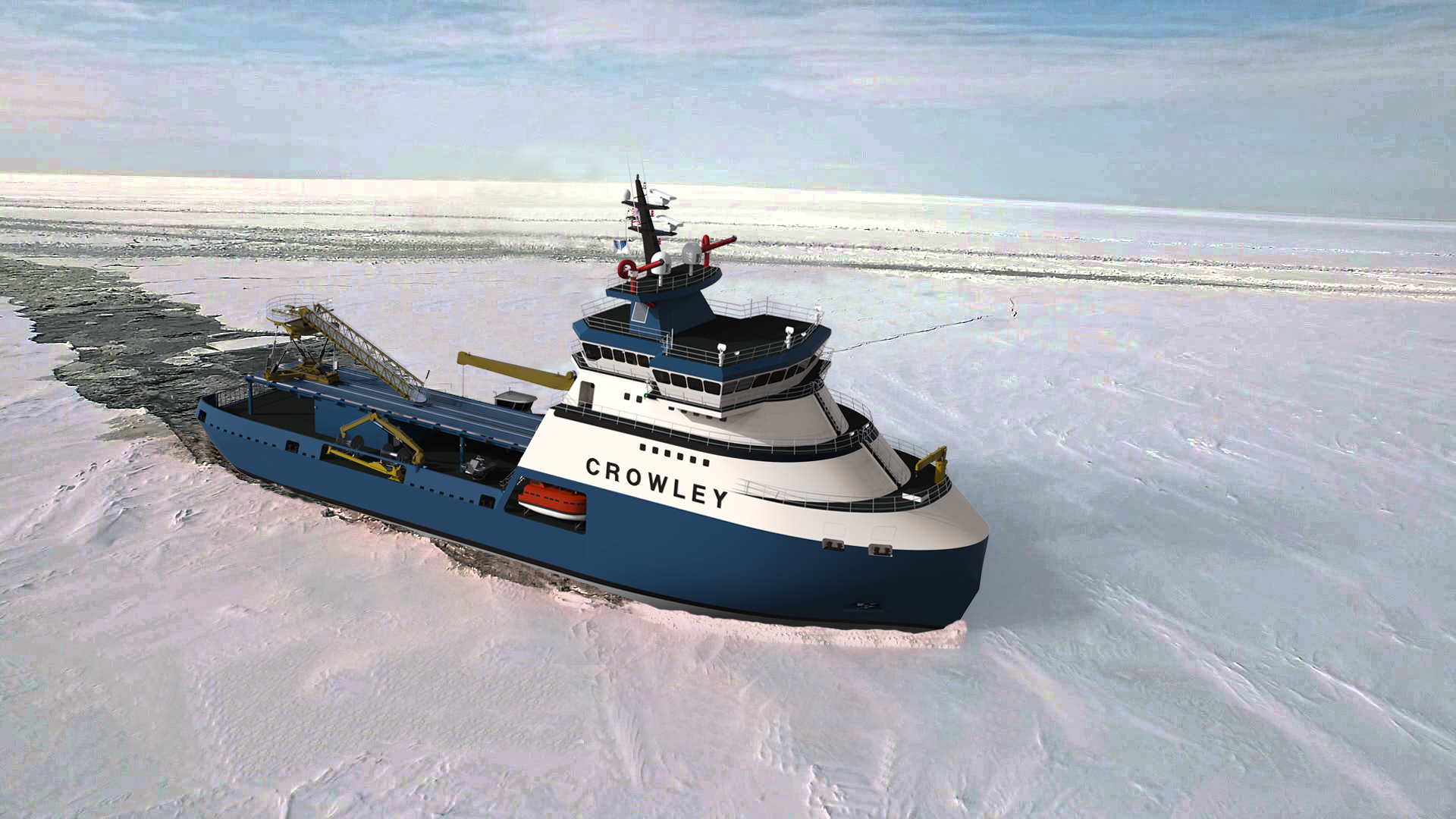

151′ x 44′ Line Haul Tug
TLH-15144
LENGTH: 46 m (150’-11”)
BREADTH: 13.5 m (44’-3”)
DEPTH: 7.4 m (24’-3”)
BOLLARD: 110-121 ST (100-110 MT) (estimated)
ENGINES: 2 x 3028 kW Main Engine, Tier III
FUEL CAPACITY: 177,000 gal

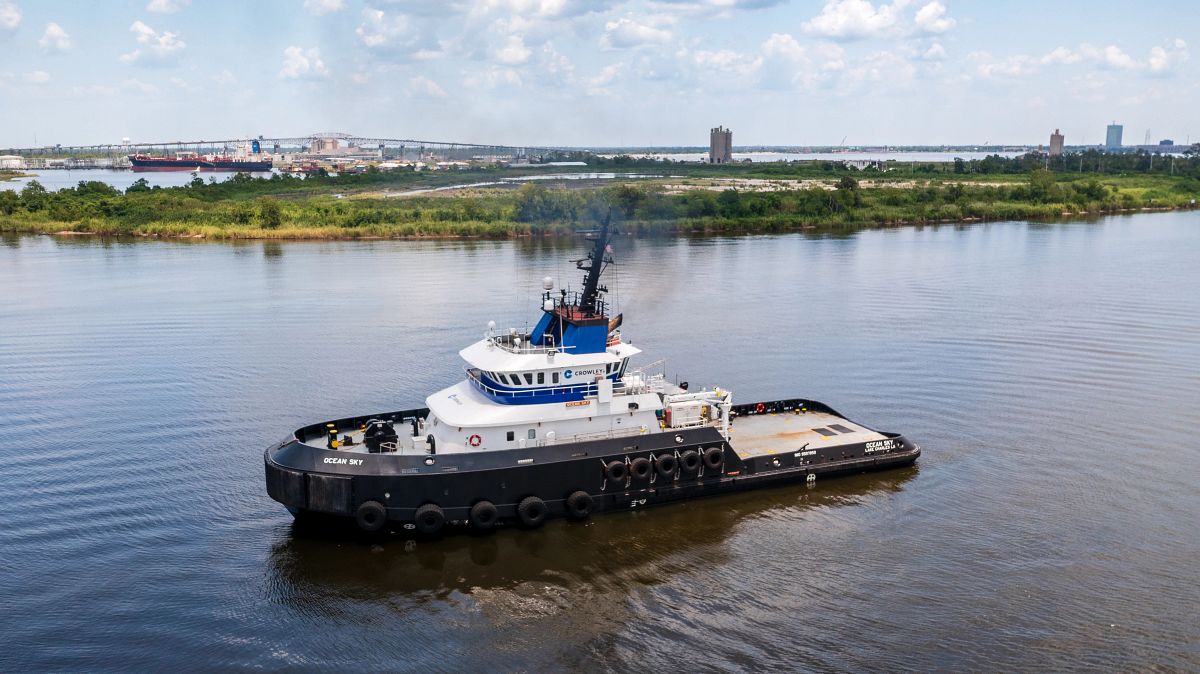

156′ x 46′ Line Haul DP Tug
TLH-15646
LENGTH: 156′ (47.5m)
BREADTH: 46′ (14m)
DEPTH: 25′ (7.6m)
BOLLARD: 300k lbs | 165 ST | 150 MT
ENGINES: 10,880 HP
FUEL CAPACITY: 220k gal (833k L)
FRESH WATER: 24,600 gal (93k L)
LUBE OIL: 2,900 gal (11,000 L)
